Hopper Bins vs Flat-Bottom Bins: Pros, Cons & Best Choice for Your Farm

Every bushel you store is money. The bin type you choose decides how hard you work to move it, how well it keeps through the season, and how much you lose to spoilage or labor costs at harvest. A hopper bin is a cylindrical steel bin with a cone-shaped bottom that funnels grain by gravity to a central discharge outlet, elevated on steel support legs. A flat-bottom bin is a cylindrical steel bin on a concrete pad where grain rests on a flat floor and requires a sweep auger or mechanical equipment to fully unload.

This guide covers design differences, unloading, aeration, cost per bushel, portability, safety, crop-specific recommendations, the retro-fit hopper cone option, and a decision guide.

What Is a Hopper Bin?

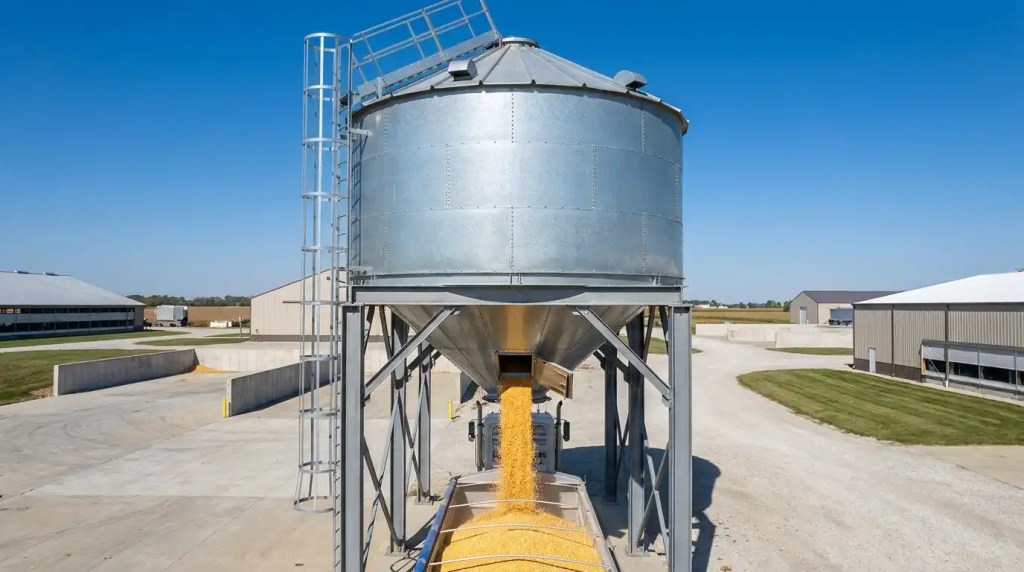

A hopper bin sits elevated on a ring of steel legs. Its cone-shaped bottom funnels grain toward a slide gate at the base. Opening that gate is the only step needed to empty the bin — no electricity, no auger, no additional labor. Common uses include wet holding before the dryer, seed storage requiring complete cleanout, quick-turn buffer bins during harvest, and overhead load-out tanks that fill a truck in minutes.

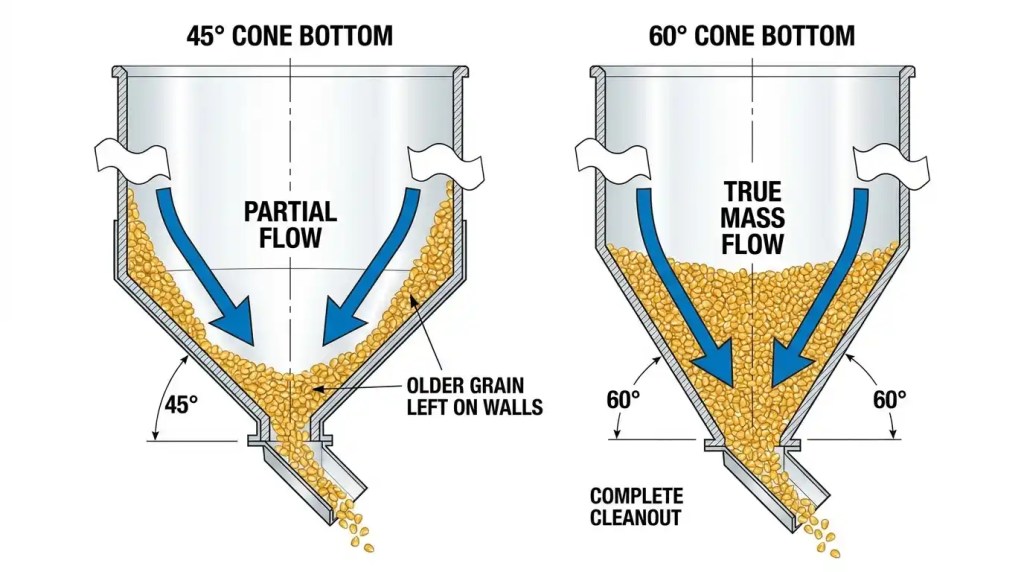

Cone Angles: 45° vs. 60°

A 45-degree cone handles free-flowing dry grain such as corn, dry soybeans, and dry wheat. A 60-degree cone is required for wet, sticky, or powdery grain. The steeper angle also achieves true mass flow — the first grain in is the first grain out. A 45-degree cone empties center-down, leaving older grain at the outer wall until last. For wet corn or tough grain with variable moisture, mass flow matters because trapped outer grain can spoil while the bin is still holding.

Construction and Manufacturers

Stiffened bins use external steel ribs for structural strength (Brock, Sukup Heavy-Duty). Non-stiffened bins use heavier sidewall gauge instead (GSI GHT). Smooth-wall designs such as Meridian GrainMax and C&L Silver Shield have no interior corrugation grooves, making cleanout faster with less trapped grain on the wall. Capacity runs from 234 bushels on small feed tanks to 106,600+ bushels on commercial models. Key brands include GSI, Brock, Sukup, AGI/Westeel, Darmani, Meridian, C&L Silver Shield, and Lorrich.

What Is a Flat-Bottom Bin?

A flat-bottom bin sits on a poured concrete pad with grain resting directly on the floor or a perforated aeration floor. The bin cannot be emptied by gravity. Unloading requires a powered sweep auger to move grain toward a center sump, followed by manual shoveling for the final floor layer. These bins are built for long-term dry bulk storage of large single-crop volumes. Some manufacturers allow a larger foundation to be poured than the current bin size so rings can be added later without rebuilding the pad. Capacity runs from 5,000 bushels on small farm bins to 500,000+ bushels at commercial elevator scale. Key brands include GSI, Brock, AGI/Westeel, Chief Agri, Behlen, and Sukup.

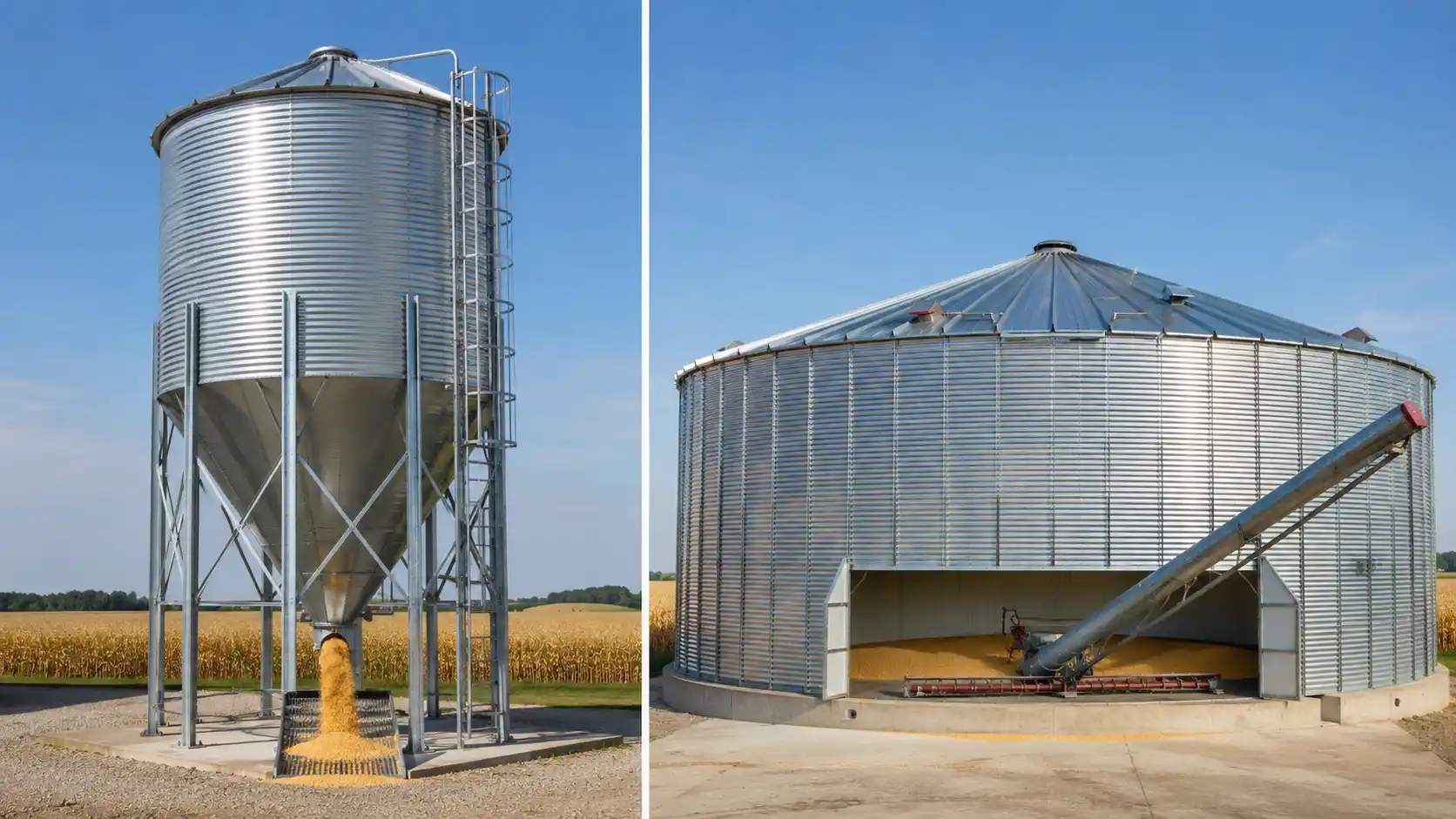

Hopper Bin vs. Flat-Bottom Bin

Compare both bin types across all key decision factors before reading the full breakdown.

Pros of Hopper Bins

Gravity Unloading — No Equipment, No Labor

There is no sweep auger to maintain, no motor to run, and no moving parts involved in emptying a hopper bin. Open the slide gate and grain flows. This eliminates an entire category of equipment cost and maintenance from the operation.

Near-Total Cleanout for Seed and Specialty Crops

The cone moves grain toward the outlet and leaves almost nothing behind. This is the only practical way to prevent variety cross-contamination between seed loads. No flat-bottom bin matches this level of cleanout without extensive manual effort.

Best Option for Wet Grain

Wet, sticky grain funnels cleanly through the cone without clumping in floor corners. Flat-bottom bins trap wet grain along floor edges where mold starts within hours at ambient temperature. If you run a continuous-flow dryer, a hopper bin feeding it runs hands-free with no manual restarts or monitoring needed.

Portability

Bins up to approximately 24 feet in diameter transport fully assembled on roads with oversize load permits. Hopper bins hold their value at auction and often appreciate over time. Farmers describe them as assets similar to land. At retirement, hopper bin storage converts to cash at auction. A flat-bottom bin stays with the land it was built on.

Safety: No Bin Entry Required

Standard unloading and grain sampling require no bin entry. This is a meaningful advantage as confined space regulations for grain bins tighten in both Canada and the United States.

Cons of Hopper Bins

Higher Cost Per Bushel

Hopper bins generally have a higher cost per bushel compared to flat-bottom bins because of their elevated steel structure, reinforced legs, and gravity discharge design.

In most cases, hopper bins tend to be more expensive on a per-bushel basis, especially as capacity increases or when full structural support systems are required. Flat-bottom bins, on the other hand, benefit from economies of scale, meaning their cost per bushel typically decreases as storage size increases.

Several factors influence the final cost, including:

• Bin capacity and diameter
• Steel thickness and structural design
• Foundation and installation requirements
• Aeration and unloading system setup
• Manufacturer and regional material pricing

Because of these variables, hopper bins are usually chosen for operational efficiency and speed, while flat-bottom bins are preferred when minimizing storage cost per bushel is the main priority.

Foundation and Filling Challenges

A hopper bin concentrates its full weight through a ring of steel legs, requiring a heavier concrete specification than a flat-bottom pad. On clay or soft ground this concentrated load has caused documented bin tipping. Soil testing is not optional on uncertain ground. The elevated design also requires a longer fill auger at a steeper angle, which slows throughput and increases shear bolt stress on the drive.

Aeration Limits and Auger Moves

Standard tube aeration leaves the outer ring of grain in wider bins under-aerated — a spoilage risk for long-term bulk storage without supplemental monitoring. Small bins fill fast during harvest and require auger repositioning four to six times per day, a consistent complaint among farmers running a yard of small hoppers.

Hopper bins are not designed for grain drying. Sukup explicitly states that medium and heavy-duty hopper bins are for aeration and storage only. Wet grain should not remain in a hopper bin for more than 72 hours without being moved to a continuous-flow dryer. Exceeding this window creates spoilage the bin’s aeration system cannot prevent.

Pros of Flat-Bottom Bins

Lowest Cost Per Bushel

Flat-bottom bins become more cost-efficient as storage capacity increases. In general, larger storage systems benefit from economies of scale, where the cost per bushel tends to decrease as overall capacity grows.

Design choices such as bin height, diameter, and structural configuration all influence cost efficiency. In many commercial setups, taller bin designs are often more economical per unit of storage compared to wider, low-capacity configurations, depending on site layout and handling requirements.

Flat-bottom bin systems are also highly scalable, and can be designed for a wide range of commercial storage needs, from moderate farm use to very large industrial grain facilities.

Best Long-Term Aeration for Dry Grain

Full-floor aeration — a perforated floor with multiple fans pushing air evenly upward — delivers the most consistent grain conditioning available per bushel. When properly sized and managed, corn, soybeans, and wheat hold quality through a full marketing season.

Workflow

Set the fill auger once and leave it running for hours. A 30,000 bushel bin absorbs most of a full day of combining without any auger moves. Farmers consistently cite this single-setup workflow as the strongest practical argument for large flat-bottom bins over a yard of small hoppers.

Permanent Asset and Expandability

A flat-bottom bin adds assessed value to your property and is included in a farm sale or succession transaction. Capacity expands by adding rings to an existing structure, and pouring a larger foundation from day one makes future expansion straightforward.

Cons of Flat-Bottom Bins

Sweep Auger and Residual Grain

Flat-bottom bins typically rely on a sweep auger system to move grain toward the center unloading point. While this system is effective for large-volume unloading, it does add an extra mechanical component that requires regular maintenance and operational oversight.

Even after the sweep auger completes its cycle, a small amount of residual grain may remain on the bin floor. This leftover material often requires additional manual cleanup, depending on the crop type and storage conditions.

Because of this, flat-bottom bins are generally less suitable for applications where complete cleanout is critical, such as seed storage or operations that involve frequent variety changes.

Wet Grain and Spoilage Risks

Wet grain trapped in floor corners starts to mold within hours at ambient temperature. Aeration dead zones form at the fill center as fines accumulate and restrict upward airflow, creating moisture hot spots. A grain spreader at the fill point and a center column temperature cable both reduce this risk.

Inverted cone risk:

Once a flat-bottom bin is half-empty and the remaining grain forms an inverted cone at the center, continued long-term storage in that state is high-risk. The grain at the outer perimeter is the oldest in the bin. Farmers on Combine Forum report this as a common cause of flat-bottom bin spoilage. Empty the bin promptly once the grain inverts.

Confined Space Hazard

Entering a flat-bottom bin for sweep operation, cleanout, or inspection is a confined space entry with real fatality risk. Grain engulfment is one of the leading causes of farm deaths in North America. The bin cannot be moved or sold separately from the land. Large operations typically require three-phase electrical service, which adds infrastructure cost before the first grain goes in.

Aeration: Which Bin Type Does It Better?

Full-Floor Flat-Bottom Aeration

A perforated floor and multiple fans push air evenly upward through every bushel. This is the most effective long-term grain conditioning system available. The main failure mode is fines accumulating at the fill center and restricting airflow. A grain spreader at fill point and a center column temperature cable both manage this risk.

Standard Hopper Bin Tube Aeration

A single tube runs down the center column and aerates the central grain mass adequately. The outer ring in wider bins receives less airflow. This is acceptable for short-cycle wet holding and seed storage but not optimal for long-term bulk storage without supplemental monitoring.

Full-Floor Hopper Aeration

NorBin, Sukup, and Brock now offer full-floor aeration systems inside the hopper cone. In testing documented by Farmtario, a 21-foot 8,000-bushel NorBin setup with a 10-horsepower fan achieved over 10,500 CFM — more than one CFM per bushel, enabling actual drying rather than just cooling. This system costs more than standard tube aeration but significantly improves long-term hopper bin storage quality.

Canola storage warning:

Do not store canola in large tall flat-bottom bins without active remote monitoring. At 30-foot sidewall heights, static pressure through a full canola bin reduces airflow to near zero regardless of fan size. Multiple farmers have documented losses of 50,000 to 80,000 bushels from this failure. Smaller diameter bins or hopper bins are the correct storage choice for canola. The same risk applies to oats.

Unloading Speed and Harvest Workflow

Hopper Bins

Open the slide gate and grain flows in minutes — no equipment, no labor. Overhead bins load a truck in under three minutes based on farmer-reported times on NewAgTalk. When a hopper bin sits beside a continuous-flow dryer, it feeds the dryer steadily without any manual monitoring. Grain samples come from the slide gate without entering the bin.

Flat-Bottom Bins

Unloading runs in steps: gravity flow from the center sump, then powered sweep, then manual shoveling of the residual floor layer. A properly sized 11-inch U-trough system matches the output of a 13-inch fill auger and loads multiple trucks before the sweep is needed. During filling, the flat-bottom bin has the clear workflow advantage — set the fill auger once and leave it for hours with no repositioning until the next day.

A practical sizing rule from farmer discussions: build storage that matches what you can harvest in one day. For most operations this points toward fewer and larger bins rather than many small hoppers.

Portability, Resale Value and Succession Planning

Hopper bins up to approximately 24 feet in diameter transport fully assembled with oversize load permits. They hold strong auction value and often appreciate over time. At retirement, hopper bin storage converts directly to cash at auction. If you sell the land but keep farming, the bins move with you. Flat-bottom bins are permanently anchored to their concrete pads with zero standalone resale value. For operations intending to sell the farm as a complete going concern, flat-bottom bins add assessed property value included in the land transaction.

Foundation and Site Requirements

Flat-bottom bins distribute weight evenly across a full concrete pad with standard PSI loads. Large operations with multiple fans typically need three-phase electrical service. Hopper bins concentrate full weight through a ring of steel legs, requiring a reinforced ring pad or full slab rated for the higher PSI per contact point.

Clay soil warning:

Hopper bins have shifted and tipped on clay or soft ground in documented real-world cases. The concentrated leg loads compress clay soil seasonally, and a bin that was level at installation can tilt over several years. Soil testing before installing a hopper bin on uncertain ground is not optional.

Hopper bins are taller and narrower than flat-bottom bins at equivalent capacity, making them easier to fit into tight yard layouts with less concrete footprint per bushel. Plan traffic flow and space for future expansion before the first pad is poured.

Retro-Fit Hopper Cones: Convert Your Flat-Bottom Bin

A retro-fit hopper cone is a steel cone fitted under an existing flat-bottom bin base ring that converts it to gravity discharge — permanently eliminating the sweep auger. The bin is raised on jacks or a pit is excavated, the cone is bolted under the base ring, and the discharge outlet is plumbed to the existing drag conveyor or grain leg.

The strongest case for a retro-fit is when the sweep auger on an existing bin needs replacing anyway, or when a new dryer is being added and a wet holding buffer bin beside it is needed without building a new hopper bin. A structural assessment is required because not all flat-bottom bins can support the conversion, and the added height requires a longer fill auger.

Which Bin Is Best for Each Crop?

Corn and Soybeans

Both crops have excellent airflow and low bridging risk. Large tall flat-bottom bins are the ideal bulk storage solution. Use hopper bins only for seed varieties or identity-preserved lots requiring complete cleanout.

Wheat and Durum

Flat-bottom bins work well with proper full-floor aeration. A grain spreader at fill point manages center fines. Temperature cables at the center column and at mid-radius allow safe long-term storage.

Canola

Do not store canola in large tall flat-bottom bins without active remote monitoring. Airflow at 30-foot sidewall heights is near zero regardless of fan size. Multiple farmers have documented losses of 50,000 to 80,000 bushels from this failure. Smaller diameter bins or hopper bins are the correct storage choice for canola.

Oats

Oats present the same airflow risk as canola. Large flat-bottom bins are high-risk for oat storage. Small bins or hopper bins are the correct choice.

Seed Grain & Specialty Crops

Any seed grain requires a hopper bin. Complete gravity cleanout is the only reliable way to prevent variety cross-contamination. The same applies to specialty, organic, and identity-preserved crops where any contamination means a lost premium.

Safety Considerations

Grain engulfment inside flat-bottom bins is one of the leading causes of farm fatalities in North America. Confined space entry for sweep operation, cleanout, and inspection requires strict protocols. Most farm sweep augers have no safety cage and no interlock preventing the auger from running while someone is inside the bin.

Hopper bin standard operations — unloading and grain sampling — require no bin entry. The primary structural hazard for hopper bins is tipping on inadequate foundations. The cone liner wears down over years and should be inspected annually through the access panel that Sukup includes on their bins.

Upcoming regulatory change: Active discussions in Canada and the United States are moving toward formally reclassifying grain bins as enclosed spaces, requiring a written entry plan and a dedicated outside observer for any bin entry. This will significantly increase the operational burden of every task requiring entry into a flat-bottom bin. Hopper bins are largely unaffected because standard operations do not require bin entry.

Using Both Bin Types

Most experienced grain farmers use both. Flat-bottom bins handle bulk dry storage of single crops at the lowest cost per bushel. Hopper bins handle wet holding beside the dryer, seed grain, identity-preserved crops, and anything requiring complete cleanout. Size the flat-bottom side on total annual harvest volume. Size the hopper bins on daily harvest throughput through the dryer.

A setup that comes up consistently on Combine Forum: 3,800 bu hopper bins for seed and quick-turn crops combined with 24,000 bu flat-bottom bins for bulk corn and wheat. Bins beside the dryer cycle constantly and justify the hopper premium. Bins in the main yard hold long-term, and flat-bottom economics dominate there.

Which Bin Is Right for You?

Answer these five questions about your operation. Your answers point directly to the right bin type.

If your answers split across both columns, the mixed storage strategy above is the right answer for your operation.

What to Choose?

Choose a Hopper Bin When:

Grain arrives wet, tough, or sticky at harvest. You store seed grain or identity-preserved specialty crops requiring complete cleanout. Portability, resale value, or farm succession flexibility matters. Your primary crops are canola or oats. Eliminating confined space entry from routine operations is a safety priority.

Choose a Flat-Bottom Bin When:

Lowest cost per bushel is the priority. You need 25,000 bushels or more of single-bin capacity. You store corn, soybeans, or wheat in long-term dry bulk programs. Your operation is permanent and tied to the land you farm.

Best Answer for Most Operations

Use both. Hopper bins beside the dryer for wet grain and seed. Flat-bottom bins in the main yard for dry bulk accumulation and long-term marketing storage. This combination delivers the lowest overall cost per bushel while keeping cleanout flexibility and dryer efficiency exactly where they matter most.
